Introduction

Today, almost every single game out there has got an online component: These range from sharing game progress across multiple devices, to tracking achievements and enabling social services, to implementing the whole game logic on the backend side for online multiplayer and cheat protection.

Thus, most games are made up of a frontend and a backend:

All of these backends need to scale with the number of clients they need to serve. The more players are playing our game simultaneously, the more there is to do for the backend machines. Traditionally, backend developers where estimating the maximum amount of load each backend machine can take, i.e. 100 players being logged in simultaneously. Then, they were setting a number of machines matching the estimated number of total players of the game. In order to make sure that players are distributed evenly across all machines, they were setting up either some sort world selection for the players, or setting up an automatic load balancer. The former forces players to decide where to play, with the worst case scenario of them being unable to play with their friends, which in turn might have selected a different world (and thus, backend machine) to play on. In either case, we'd have to provide as much computing power as it takes for handling the maximum amount of simultaneous sessions. This setup leads to two obvious disadvantages:

Recently, people keep telling that most of these problems have been solved: "Easy, just run your backend in the cloud!" Now, it happens that the term cloud is being used to describe a wide range of architectures, for solving various classes of problems. If you're adding some of your files to your Dropbox, you're leveraging "the cloud" as backup store and for sharing data across devices. Big companies use "the cloud" for tapping into seemingly unlimited computing resources and solving large-scale problems.

What is "the cloud", and how can it help us to build a gaming backend that meets all of the above challenges?

There are various definitions out there, so let's give it a try:

The cloud provides the combined computation and storage resources of an undetermined number of machines to other devices at arbitrary locations on demand.

There are many cloud providers out there nowadays, most of which use the internet to provide their resources to consumers around the globe. These cloud providers usually feature very easy setup and provisioning of these resources, and allow their customers to pay for their service according to usage.

Getting started with cloud development can be overwhelming at first: The landing page of Microsoft Azure, for instance, offers more than 80 services. The big companies try to do their best to provide detailed instructions to get started, but with a technology as huge and powerful, comprehensive tutorials are rare.

In this blog series, I'm walking you through the basics of getting your gaming backend up and running in the cloud, connecting your client, and storing your player data in a scalable cloud storage.

Backend Architecture Overview

Let's take a minute and walk through the general idea of how to set up a scalable backend architecture, before we take a look at an actual implementation.

In the proposed architecture, we're using a Universal Windows Platform (UWP) client, but clearly, we can use any kind of client here, including a Unity or Unreal application. The client connects to a web service which acts as interface between the frontend and the actual backend services. We don't want our clients (or any potential attacker) to directly interact with the backend services. The web service itself doesn't do very much, except for relaying any requests to the respective backend services. Thus, it can be stateless, and theoretically be scaled indefinitely, because we can run it on any number of machines.

The heart of our backend is split up into actors. These microservices contain the actual business logic of the backend, such as creating new user profiles, sending chat messages or trading items between players. How much we'd like to split up our actors is up to us, and as the concept of the actor model is still fairly new to commercial game development, there's no golden rule here yet. Just keep in mind that with increasing the number of different actor types, there's the well-known trade-off between separation of concerns and message passing. Adding more different actor types allows us to scale parts of our backend up (and down) with higher granularity: If many players are trading right now, we can create more actors for handling transactions. If there's a huge battle, create more actors for calculating collisions and hit chances. However, with more different types of actors, we might be required to pass more messages around to get the actual job done. Azure will handle the requirement of scale-up, scale-out or handling fail-overs for us, but that means that we won't know for sure whether the actors that are talking to each other are running on the same machine, or not.

Finally, at some point, we're going to have to persist some part of the game state. We're using Azure DocumentDB here, because it's easier to scale document-based databases than traditional relational databases. All of this comes at the cost of data integrity though: There's no such thing a foreign keys in DocumentDB, so we might want to spend some time deciding which things to put into which document.

Now that we've understood the basic idea of our backend architecture, let's get our hands dirty and write some actual code.

Service Fabric Setup

The first step is to properly set up our development environment:

Set-ExecutionPolicy -ExecutionPolicy Unrestricted -Force -Scope CurrentUser

Many of the Azure tools are based on PowerShell scripts. The above line enables the tools to deploy and run a local development cluster on our machine, so we don't have to upload our changes to the cloud every time.

Now, it's time to start Visual Studio and create a new project:

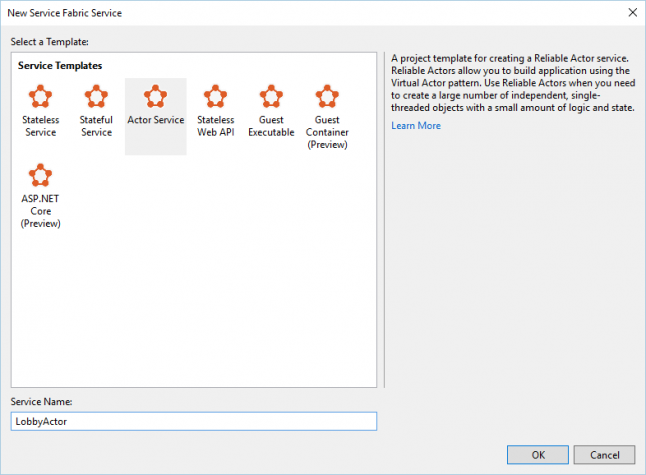

For the initial service fabric service, select the Actor Service template.

Visual Studio will create three projects for us:
