This blog article is mainly a written protocol of my talk at the Quo Vadis 2017 conference in Berlin, Germany, entitled „Perception: The most technical issue of VR“: http://qvconf.com/content/perception-most-technical-issue-vr . The talk was also recorded and can be watched online: https://vimeo.com/ondemand/quovadis2017/



Fifty years of virtual reality research resulted in a lot of interesting findings that are also important for game development. Especially, perception is a very important factor for VR since it is connected to immersion, presence, and motion sickness, which are key terms for the development of VR games. Furthermore, perception might be different from the real world and can even be manipulated.

In this article, I want to highlight some of the research results about perception in VR we and other scientists found. I hope this will provide a better understanding of the human perceptual system and its effects on the design of VR games to you. Since perception in VR is a general topic, the content of this article can also be applied to other domains than game development like architecture, tourism, or therapy.



This article is structured according to three theses about perception:



1. Perception is important

In more detail: The user‘s perception is more important in VR games than in traditional games. When developing a traditional game, you have to care about a lot of things: fun, performance, reliability, balancing and so on. For VR games, you can add a few more things to this list:





Immersion is limited by the objective capabilities of the VR technology [0] which are technical factors like vision, tracking, field of view, resolution, graphics quality etc. This means, a VR system that enables stereoscopic vision is more immersive than a VR system that enables only monoscopic vision. A VR system that enables position and orientation tracking is more immersive than a VR system that enables only orientation tracking. A VR system that enables to render real-time shadows is more immersive than a system that does not enable this.

Current head-mounted displays (like the Oculus Rift or HTC Vive) usually offer stereoscopic vision, position and orientation tracking, high resolution (> FullHD), low latency (< 20ms), high frequency (90 hertz), and a wide field of view (~110°). This is already quite good and delivers a high degree of immersion. But it does not yet fit the needs of human perception. The human field of view is about 220° and the human eyes would need a resolution with ~116,000,000 pixels while Rift or Vive offer only 2,592,000 pixels.



The Sense of Presence is defined as the subjective estimation of feeling present in an environment [1] and can be described by these sentences:





Immersion (objective) as well as presence (subjective) are connected to perception. But what exactly is perception? I like to explain it based on the core loop of a game engine because every game developer knows that. Basically, a game engine carries out three steps every frame: Input handling, computation and updating the game state, output/rendering of the game state. The human brain works similar. At any given time, we perceive the world around us, we process informations, and we carry out actions. These steps are called perception (= Input), cognition (= updating game state), and action (output). Hence, perception is the human input handling. Moreover, when playing a game, the three steps of a game engine and the three steps of the human brain are connected. The player perceives the output of the game, processes these informations and decides for an action, e.g. pressing a button on a gamepad, which is handled as input for the game.

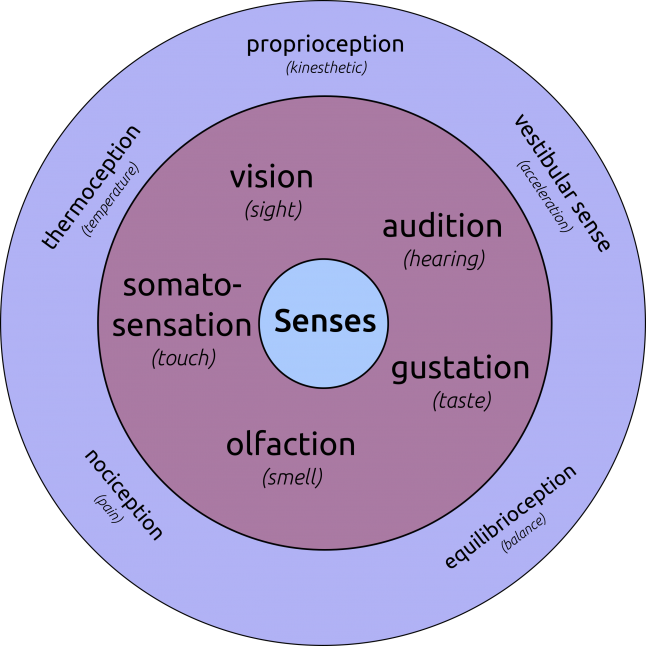

Since the human is a very complex system, perception is based on a lot of different sensory channels. A human can smell, taste, see, hear, and feel the output of a game. Traditional games usually only supply two channels: vision and audio. VR games on the other hand do not only offer a better visual stimulus than traditional games (cf. paragraph about Immersion) but they also provide vestibular (i.e. perceiving accelerations) and proprioceptive (i.e. „feeling“ the position and orientation of your bones and joints) feedback due to position and orientation tracking. Hence, the immersive nature of VR technology is directly coupled to the supported sensory channels of the human perception. Furthermore, the supported sensory channels influence the sense of presence: I feel more present when my vestibular and proprioceptive senses, or even my senses of smell and taste, are stimulated.





More than 50 years ago, in 1965, Ivan Sutherland, a pioneer in the field of 3d computer graphics, wrote an essay in which he phrased the vision of virtual reality [2]. He called it „The Ultimate Display“ and stated that such a display „should serve as many senses as possible“. Actually, it would be a display of smell, taste, vision, audio, and kinesthetics.

Hence, this first definition of virtual reality already put the importance of perception into focus.



But this is not the only reason why perception is important for virtual reality. Another one is that a mismatch of different sensory channels leads to cyber sickness or VR sickness [3]. This kind of sickness can have different sources but most often it occurs when a motion is visually perceived but not felt by the vestibular and proprioceptive senses. Hence, every VR developer should avoid it.



2. Perception is different

The user‘s perception of a virtual environment is different than the user‘s perception of the real world. This is true even if the virtual world is an exact replica of the real one. The effects can be observed for example for spatial perception and spatial knowledge.



Spatial perception describes the ability of being aware of spatial characteristics like sizes, distances, velocities, and so on. A lot of literature in VR research reports of studies that found a significant misperception of distances and even velocities when compared to the real world [4]. We do not know the exact reason but two explanations seem to be valid:







Spatial knowledge defines the ability to build up an understanding of the environment like a mental map of the virtual world. This is helpful for orientation in 3d space which is essential for navigational performance. Different studies showed that spatial knowledge and navigational performance is increased when the virtual environment was explored by a natural locomotion technique we know from the real world like walking [5]. Joystick controls and even teleportation leads to worse spatial knowledge.



3. Perception can be manipulated

The user‘s perception of a virtual environment can be manipulated. A very common example that this is even possible in the real world is the rubber hand illusion. This is a psycho-physical experiment in which the participant‘s hand is hidden and a rubber hand is placed in front of her. Both hands (real hand and rubber hand) are stimulated with a brush. After a while, the experimenter takes a hammer and punches the rubber hand. The participant developed an ownership for this rubber hand and is really scared of the hammer.
